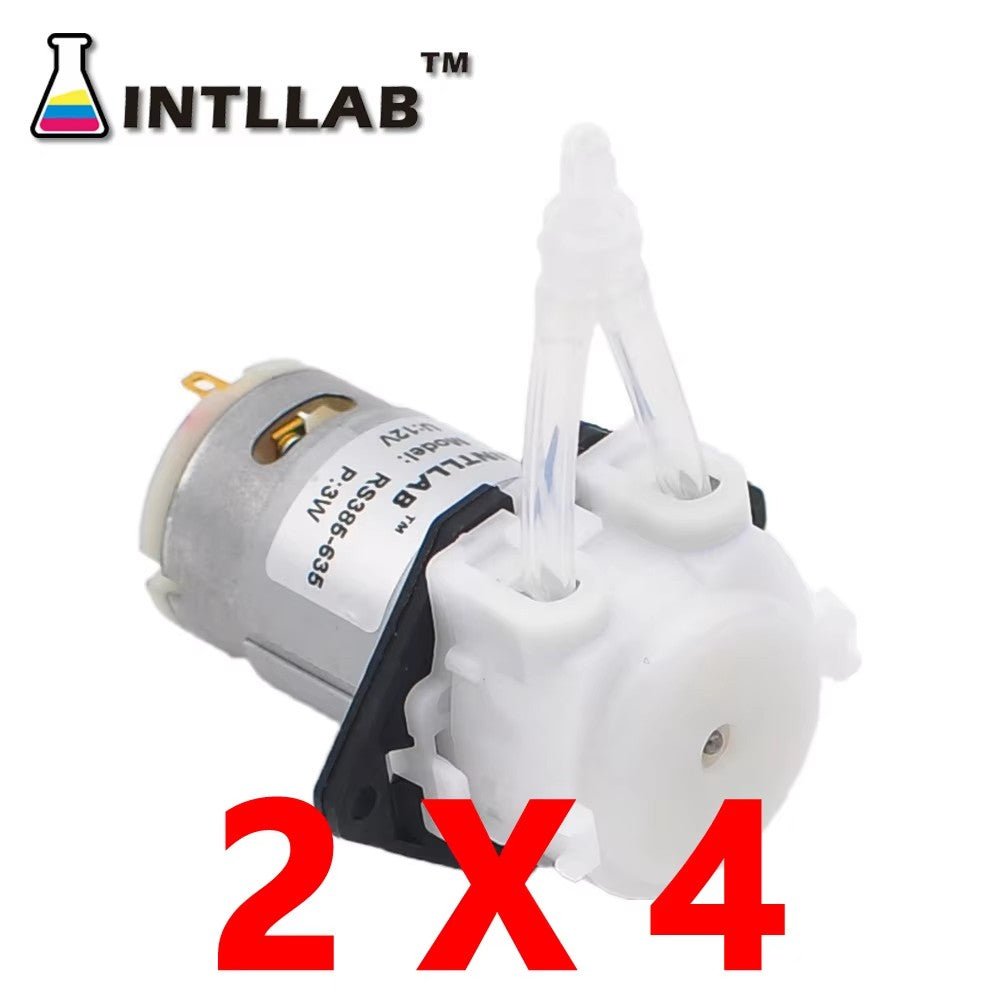

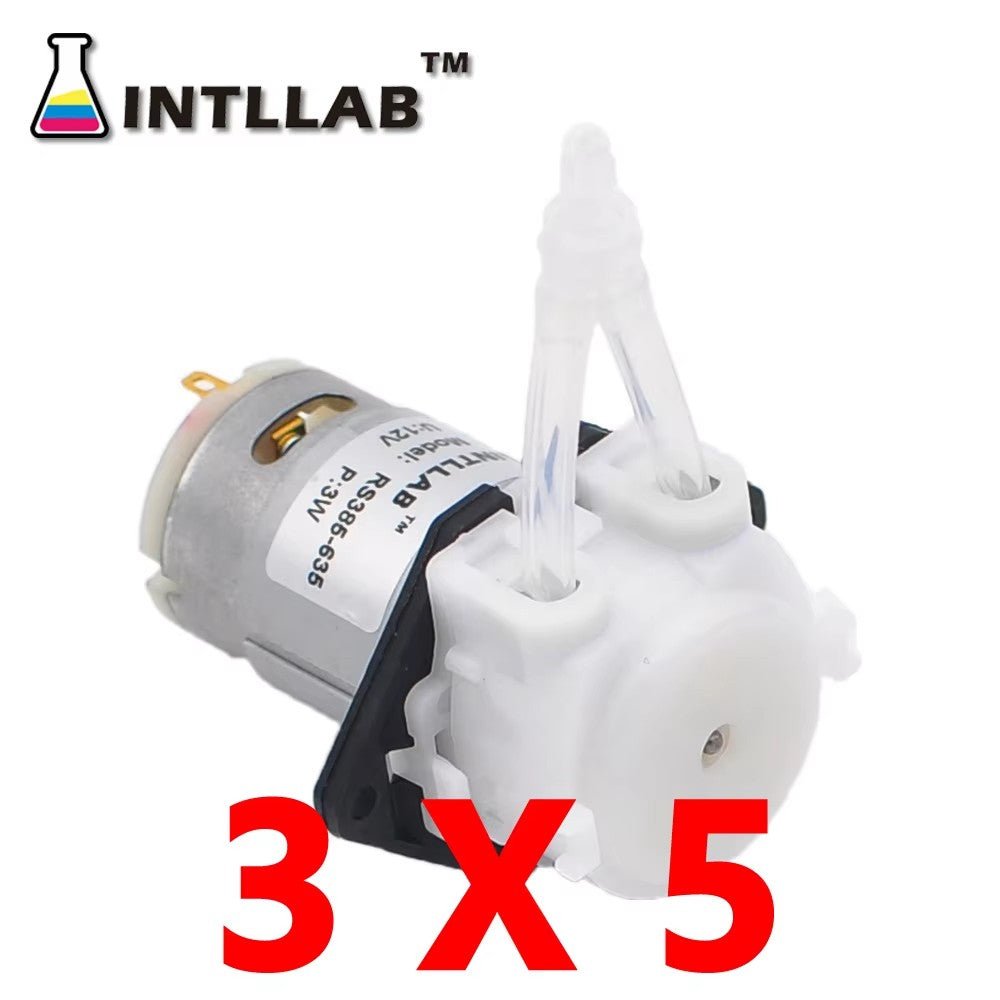

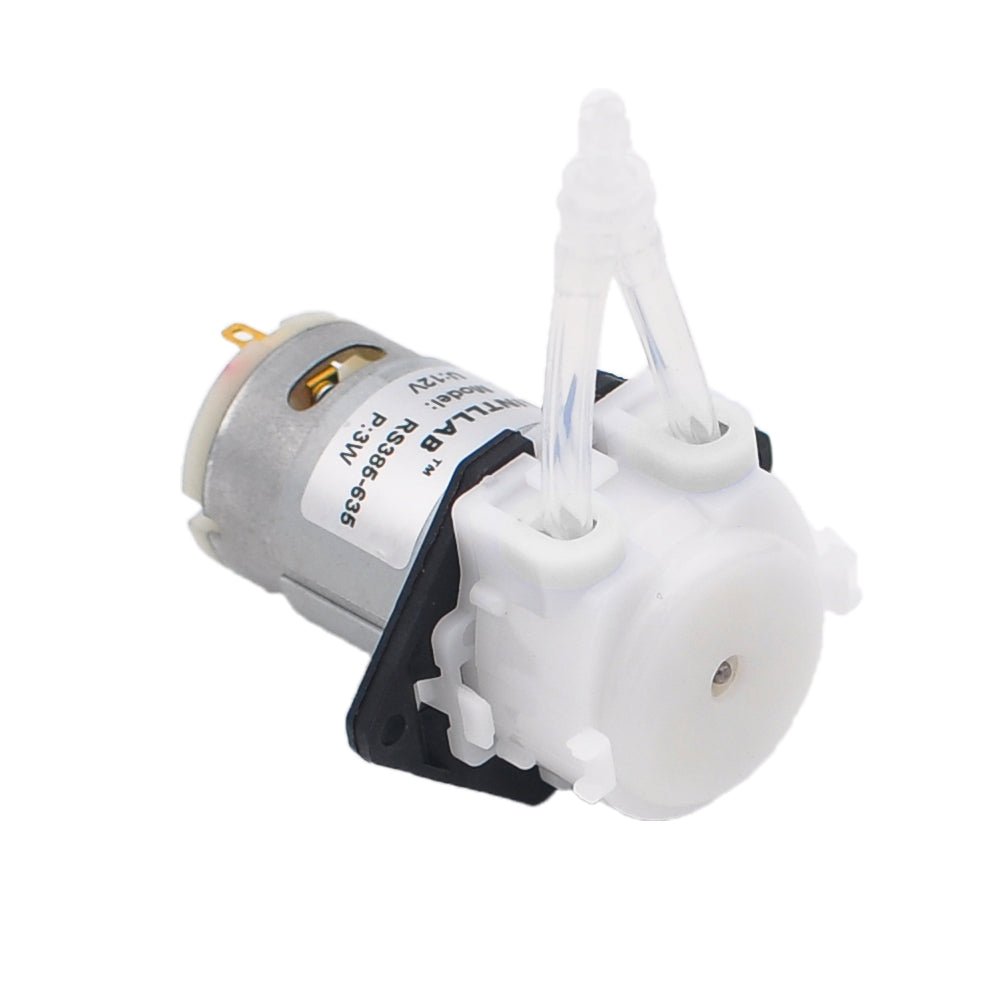

INTLLAB 12V Peristaltic Dosing Pump, Miniature Liquid Transfer Pump for DIY Arduino Automation, Aquarium Auto Top Off & Reef Tank Dosing, Viscous Liquid Compatible
⚡ Precision | ⚙️ Stability | 🔬 Science-driven design
✨ Engineered for precision dosing & DIY innovation
Whether you are automating your reef tank top-offs, building an Arduino-controlled hydroponics doser, or setting up a pool chlorine delivery system, the INTLLAB 12V Peristaltic Dosing Pump delivers the reliable performance you need to bring your DIY projects to life.
Picture this: No more manual measuring or worrying about missing a daily dosing schedule. Your aquarium plants thrive on perfectly timed nutrients, your pool stays crystal clear, and your custom lab analytical liquid pump runs seamlessly. With our compact positive displacement pump, you can effortlessly create a multi-channel liquid transfer system that works silently and consistently in the background.
Unlike expensive commercial dosing setups or other single pumps that break the bank, our cost-effective single pump offers the ultimate value for makers and hobbyists.
📦 Key Engineering Advantages
EFFORTLESS TUBE MAINTENANCE!
Tool-free snap-in head design makes it easy to disassemble and clean, instantly solving tubing wear without complex repairs.
BUDGET-FRIENDLY SINGLE PUMP!
This cost-effective dosing pump ensures consistent flow rate calibration for your custom Arduino controlled automation and multi-channel systems.
VERSATILE PUMPING POWER!
The 12V brushed motor is viscous liquid compatible, smoothly transferring thick laundry detergent or thin pool chlorine without stalling.
ULTIMATE FLOW CONTROL!
Simply switch positive and negative terminals for reversible flow direction, effectively preventing unwanted siphoning in this positive displacement pump.
COMPACT AND QUIET!
The space-saving footprint ensures quiet continuous operation, perfectly fitting tight enclosures for lab analytical liquid pump or hydroponics pH dosing setups.
Why INTLLAB is the Professional’s Choice
Unlike expensive commercial dosing setups or other single pumps that break the bank, our cost-effective single pump offers the ultimate value for makers and hobbyists.
Say goodbye to complex repairs. Our innovative snap-in pump head features no valves or seals, allowing you to easily disassemble and clean the unit, or replace tubing in seconds without a single tool.
Driven by a robust 12V DC motor, this pump is fully viscous liquid compatible. It smoothly transfers everything from thin aquarium water to thicker fluids like laundry detergent metering pump applications.
Need to clear the lines? The reversible flow direction can be instantly controlled simply by switching the positive and negative connections, preventing unwanted siphoning.
Designed for limitless DIY automation
Simple setup, professional results
Customizable Flow Rates & Technical Specifications
Different projects require different precision. The flow rate of our peristaltic pump varies depending on the tube size you equip it with, giving you the flexibility to handle both micro-dosing and faster liquid transfers:
- 1.0mm ID x 3.0mm OD: 2~17 mL/min
- 2.0mm ID x 4.0mm OD: 5~40 mL/min
- 3.0mm ID x 5.0mm OD: 19~100 mL/min
Motor: 12V DC
Tube Material: Food-grade silicone
Pump Head: Durable engineering plastics with a 3-roller design for low pulsation
Operating Environment: Temperature 0~40°C, Relative Humidity <80%
Weight: 95g per pump
A: Like all peristaltic dosing pumps, tubing is a consumable part. However, our snap-in head design makes replacing the tube incredibly fast and tool-free. To maximize lifespan, we recommend running the pump periodically so the rollers don’t rest on the same spot for extended times.
A: Yes! The motor is designed to provide versatile pumping power. It easily handles both non-viscous liquids (like pool chlorine and water) and viscous liquids (like liquid soap) without engine strain.
A: Yes, these pumps offer consistent flow rate calibration. Depending on the tube size you use, the flow remains steady. For projects requiring high precision (under 1mL), a quick initial calibration via your Arduino script will ensure highly repeatable and reliable dosing.
1 x INTLLAB 12V DC DIY Peristaltic Liquid Dosing Pump (Note: Power supply, external tubing adapters, and microcontrollers are not included)
Upgrade Your Workflow Today.
Reliable peristaltic dosing for automation, aquariums, and labs — start building your multi-channel system now.
